目录

一、测试机器及部署环境说明

二、postgresql运行参数配置

三、pgpool-II部署及运行参数配置

四、pgbench性能测试对比

五、性能分析及应用总结

一、测试机器及部署环境说明

1、Postgresql主备节点部署硬件

2、pgpool部署机器硬件

和

3、pgbench运行机器硬件

4、各应用软件版本

二、postgresql运行参数配置

1、posgresql.conf配置

listen_addresses = '0.0.0.0'
port = 9610
max_connections = 500
shared_buffers = 16384MB
work_mem = 4MB
maintenance_work_mem = 512MB
autovacuum_work_mem = -1
checkpoint_timeout = 60min
max_wal_size = 6GB
min_wal_size = 2GB
checkpoint_warning = 30s
wal_level = replica
max_wal_senders = 3
wal_keep_segments = 8000
hot_standby = on
max_standby_archive_delay = 1800s
max_standby_streaming_delay = 1800s
log_destination = 'csvlog'
logging_collector = on
log_min_duration_statement = 1000
log_checkpoints = on
autovacuum = on
log_autovacuum_min_duration = 0
autovacuum_max_workers = 3
timezone = 'PRC'

2、pg_hba.conf配置

host    all             all             127.0.0.1/32            md5
host    all             all             192.168.1.0/24          md5
host    replication       postgres        192.168.1.0/24          md5

3、recovery.conf配置

standby_mode = 'on'
primary_conninfo = 'host=192.168.1.146 port=9610 user=postgres password=pgsql'
recovery_target_timeline = 'latest'

三、pgpool-II部署及运行参数配置

1、下载pgpool源码

[root@pgpool-01 source]# wget http://www.pgpool.net/download.php?f=pgpool-II-3.6.4.tar.gz

2、编译安装pgpool

[root@pgpool-01 source]# tar zxf pgpool-II-3.6.4.tar.gz
[root@pgpool-01 source]# cd pgpool-II-3.6.4
[root@pgpool-01 pgpool-II-3.6.4]# ./configure --prefix=/usr/local/pgpool-II-3.6.4/
--with-pgsql=/usr/local/pgsql9.6.1 --with-openssl
[root@pgpool-01 source]# gmake
[root@pgpool-01 source]# gmake install

为pgpool 软连接一个标准运行目录

[root@pgpool-01 pgpool-II-3.6.4]# ln -s /usr/local/pgpool-II-3.6.4 /usr/local/pgpool

3、配置pgpool.conf

[root@pgpool-01 pgpool-II-3.6.4]# cd /usr/local/pgpool/etc
[root@pgpool-01 etc]# cp pgpool.conf.sample-stream pgpool.conf
[root@pgpool-01 etc]# vim /usr/local/pgpool/etc/pgpool.conf

#监听参数配置
listen_addresses = '*'
port = 9999
socket_dir = '/tmp'
pcp_listen_addresses = '*'
pcp_port = 9898
pcp_socket_dir = '/tmp'

#节点参数配置
#节点一
backend_hostname0 = '192.168.1.146'
backend_port0 = 9610
backend_weight0 = 0
backend_data_directory0 = '/home/postgres/data9.6.1'
backend_flag0 = 'ALLOW_TO_FAILOVER'
#节点二
backend_hostname1 = '192.168.1.12'
backend_port1 = 9610
backend_weight1 = 0
backend_data_directory1 = '/home/postgres/data9.6.1'
backend_flag1 = 'ALLOW_TO_FAILOVER'

#认证方法配置
enable_pool_hba = on
pool_passwd = 'pool_passwd'

#连接池配置
num_init_children = 200
max_pool = 4

#日志配置
log_destination = 'syslog'
log_connections = off
log_hostname = off
log_statement = off
log_per_node_statement = off
syslog_facility = 'LOCAL0'
syslog_ident = 'pgpool'

#pid文件及状态文件存放路径
pid_file_name = '/usr/local/pgpool/pgpool.pid
logdir = '/usr/local/pgpool'

#pgpool工作方式，负载+复制（流复制方式）
load_balance_mode = on
master_slave_mode = on
master_slave_sub_mode = 'stream'
#连接状态检查
sr_check_period = 10
sr_check_user = 'postgres'
sr_check_password = 'pgsql'
sr_check_database = 'postgres'

4、配置pcp.conf

生成pcp工具连接用户名及密码

[root@pgpool-01 etc]# pg_md5 -u pgpool -p
password:
ba777e4c2f15c11ea8ac3be7e0440aa0

配置pcp.conf文件

[root@pgpool-01 etc]# cp pcp.conf.sample pcp.conf
[root@pgpool-01 etc]# vim pcp.conf
# USERID:MD5PASSWD
pgpool:ba777e4c2f15c11ea8ac3be7e0440aa0

5、配置pool_hba.conf

[root@pgpool-01 etc]# vim pool_hba.conf
host    all         all         127.0.0.1/32          md5
host    all         all         192.168.1.0/24        md5

6、生成pool_passwd配置文件

[root@pgpool-01 etc]# pg_md5 -m -u postgres pgsql
[root@pgpool-01 etc]# cat pool_passwd
postgres:md5859b0f43555758bfa7e9cc24a8a964c1
[root@pgpool-01 etc]#

7、配置pgpool使用环境

在/etc/profile文件中增加下面内容

PATH=/usr/local/pgpool/bin:$PATH

export PATH

环境变量生效

[root@pgpool-01 etc]# source /etc/profile
[root@pgpool-01 etc]# which pgpool
/usr/local/pgpool/bin/pgpool

8、配置pgpool日志

[root@pgpool-01 etc]# vim /etc/rsyslog.conf
local0.*    /var/log/pgpool.log

[root@pgpool-01 etc]# service rsyslog restart
关闭系统日志记录器：                                       [确定]
启动系统日志记录器：                                       [确定]
[root@pgpool-01 etc]#

9、配置.pgpass密码文件

[postgres@gpool-01 etc]$ vim /home/postgres/.pgpass
*.:9610:*:postgres:pgsql
*.:9999:*:postgres:pgsql
[postgres@ppool-01 etc]$ chmod 0600 /home/postgres/.pgpass

10、启动pgpool服务

[root@pgpool-01 etc]# su postgres
[postgres@pgpool-01 etc]$ pgpool

四、pgbench性能测试对比

1、pgbench使用注意点

1）、发单进程的pgbench使用的CPU为100%时需要分成三个进程的pgbench同时跑

2）、跑pgbench需要在另外一台机器上执行，否则会占用比较多的pgpool或postgresql的系统资源

3）、pgbench的latency average计算是包括向测试终端输出信息事个过程，所以测试时需要把pgbench输出导向文件，才能获取比较准确的tps和qps,否则相差几十倍的性能值都有可能。

4）、跑pgbench前先用 ethtool em1检查网卡当前工作速率，有些网卡是10/100/1000MB自适用，以确认网卡带宽是否足够，pgbench测试过程中网络带宽经常也会成为瓶颈。

2、测试节点上配置.pgpass文件

[postgres@pgbench-01 ~]$ vim /home/postgres/.pgpass
*:9610:*:postgres:pgsql
*:9999:*:postgres:pgsql
[postgres@pgbench-01~]$ chmod 0600 /home/postgres/.pgpass

3、低迟延qps测试(每个query小于0.5)

1）、生成测试数据

create table t (id serial not null unique ,remark text);
insert into t (remark) select md5(random()::text) from generate_series(1,1000000);
vacuum;
analyze;

2）、编写测试脚本

[postgres@pgbench-01 shell]$ vim sele_bench.sql
\set id random(1, 1000000)
select * from t where id=:id;

执行的开销少于0.1ms
postgres=# explain (analyze,buffers) select * from t where id=1000000;
                                 QUERY PLAN
-----------------------------------------------------------------------------
 Index Scan using t_id_key on t  (cost=0.42..8.44 rows=1 width=37)
(actual time=0.020..0.021 rows=1 loops=1)
   Index Cond: (id = 1000000)
   Buffers: shared hit=4
 Planning time: 0.107 ms
 Execution time: 0.055 ms
(5 rows)

3）、测试结果

#直接连接pg
/usr/local/pgsql9.6.1/bin/pgbench -h 192.168.1.146 -U postgres -d postgres -p 9610
-M prepared -c 8 -T 60 -f /home/postgres/shell/sele_bench.sql >
 /home/postgres/146bench_8c_60s_1.txt 2 > &1

#连接pgpool
/usr/local/pgsql9.6.1/bin/pgbench -h 192.168.1.21 -U postgres -d postgres -p 9999
-M prepared -c 8 -T 60 -f /home/postgres/shell/sele_bench.sql >
 /home/postgres/21bench_8c_60s_1.txt 2 > &1

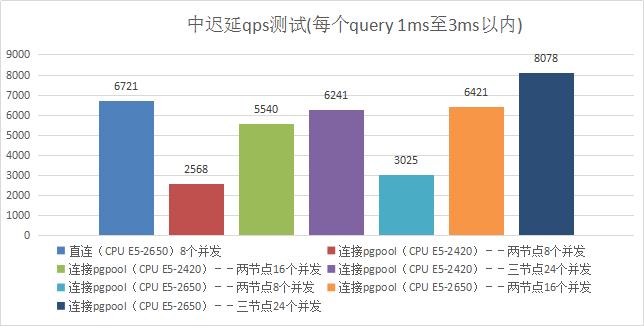

4、中迟延qps测试(每个query 1ms至3ms以内)

1）、生成测试数据

drop table t;
create table t (id serial not null ,remark text);
insert into t (remark) select md5(random()::text) from generate_series(1,10000);
vacuum;
analyze;

2）、编写测试脚本

[postgres@pgbench-01 shell]$ vim sele_bench.sql
\set id random(1, 10000)
select * from t where id=:id;

#执行的开销少于2ms
postgres=#  explain (analyze,buffers) select * from t where id=10000;
                           QUERY PLAN
----------------------------------------------------------------------
 Seq Scan on t  (cost=0.00..209.00 rows=1 width=37)
    (actual time=1.720..1.720 rows=1 loops=1)
   Filter: (id = 10000)
   Rows Removed by Filter: 9999
   Buffers: shared hit=84
 Planning time: 0.057 ms
 Execution time: 1.743 ms
(6 rows)

3）测试结果

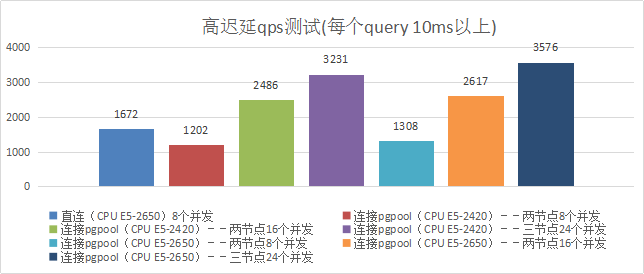

5、高迟延qps测试(每个query 10ms以上)

1）、生成测试数据

drop table t;
create table t (id serial not null ,remark text);
insert into t (remark) select md5(random()::text) from generate_series(1,60000);
vacuum;
analyze;

2）、编写测试脚本

[postgres@pgbench-01 shell]$ vim sele_bench.sql
\set id random(1, 60000)
select * from t where id=:id;

#执行的开销10ms以上
postgres=# explain (analyze,buffers) select * from t where id=60000;
                                  QUERY PLAN
----------------------------------------------------------------------------
 Seq Scan on t  (cost=0.00..1250.00 rows=1 width=37)
                (actual time=10.371..10.372 rows=1 loops=1)
   Filter: (id = 60000)
   Rows Removed by Filter: 59999
   Buffers: shared hit=500
 Planning time: 0.076 ms
 Execution time: 10.399 ms
(6 rows)

3）测试结果

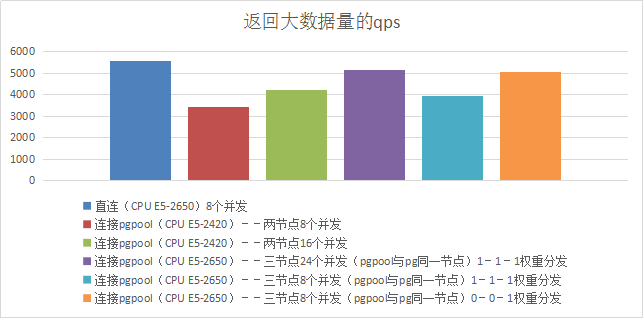

6、返回大数据量的qps

1）、生成测试数据

drop table t;
create table t (id serial not null unique ,remark text);
insert into t (remark) select repeat('hello pg,我是阿弟', 1000) from
                                            generate_series(1,10000);
vacuum;
analyze;

每条数据大约12K

2）、编写测试脚本

[postgres@pgbench-01 shell]$ vim sele_bench.sql
\set id random(1, 10000)
select * from t where id=:id;

3）测试结果

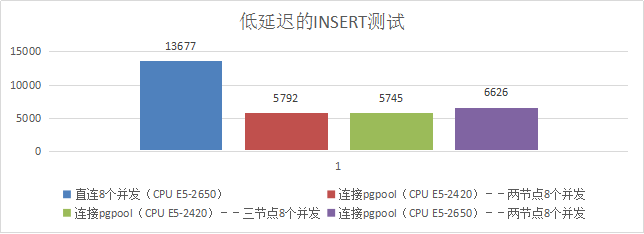

7、低延迟的INSERT测试

1）、生成测试数据

drop table t;
create table t (id serial not null unique,remark text);
vacuum;
analyze;

2）、编写测试脚本

[postgres@pgbench-01 shell]$ vim insert_bench.sql
insert into t(remark) values(md5(random()::text));

3）测试结果

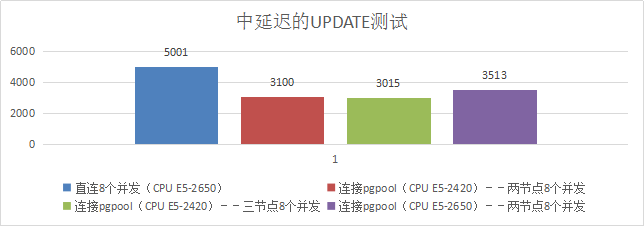

8、中延迟的UPDATE测试

1）、生成测试数据


drop table t;
create table t (id serial not null ,remark text);
insert into t (remark) select md5(random()::text) from generate_series(1,10000);
vacuum;
analyze;

2）、编写测试脚本

[postgres@pgbench-01 shell]$ vim update_bench.sql
\set id random(1, 10000)
update t set remark=md5(random()::text) where id=:id

#执行开销
explain (analyze,buffers) update t set remark =md5(random()::text) where id=1;
                             QUERY PLAN
------------------------------------------------------------------------------
 Update on t  (cost=0.00..209.01 rows=1 width=42)
              (actual time=1.885..1.885 rows=0 loops=1)
   Buffers: shared hit=85
   ->  Seq Scan on t  (cost=0.00..209.01 rows=1 width=42)
                (actual time=1.856..1.857 rows=1 loops=1)
         Filter: (id = 1)
         Rows Removed by Filter: 9999
         Buffers: shared hit=84
 Planning time: 0.086 ms
 Execution time: 1.924 ms

3）测试结果

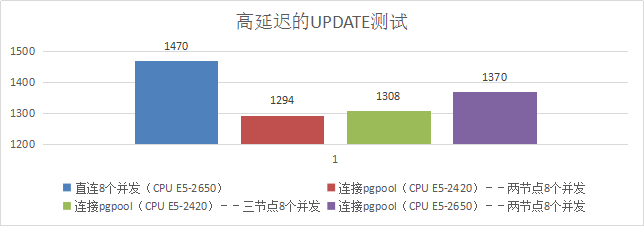

9、高延迟的UPDATE测试

1）、生成测试数据

drop table t;
create table t (id serial not null ,remark text);
insert into t (remark) select md5(random()::text) from generate_series(1,60000);
vacuum;
analyze;

2）、编写测试脚本

[postgres@pgbench-01 shell]$ vim update_bench.sql
\set id random(1, 60000)
update t set remark=md5(random()::text) where id=:id

#执行开销
postgres=# explain (analyze,buffers) update t set remark =md5(random()::text)
where id=60000;
                                QUERY PLAN
-------------------------------------------------------------------------------
 Update on t  (cost=0.00..1250.01 rows=1 width=42)
              (actual time=10.616..10.616 rows=0 loops=1)
   Buffers: shared hit=506 read=1 dirtied=1
   ->  Seq Scan on t  (cost=0.00..1250.01 rows=1 width=42)
               (actual time=10.485..10.487 rows=1 loops=1)
         Filter: (id = 60000)
         Rows Removed by Filter: 59999
         Buffers: shared hit=500
 Planning time: 0.124 ms
 Execution time: 10.656 ms
(8 rows)

3）测试结果

五、性能分析及应用总结

1、select通信捉包分析

发送select * from t where id=100这样的语句

#客户端－〉pgpool
17:38:25.026869 IP 192.168.1.11.36426 > 192.168.1.21.distinct: Flags [P.], seq 35:70,
     ack 124, win 29, length 35

#Pgpool－〉pg
17:38:25.085689 IP 192.168.1.21.hexarc > 192.168.1.146.9610: Flags [P.], seq 1:36,
    ack 1, win 31, length 35

#执行结果返回

#Pg->pgpool
17:38:25.086287 IP 192.168.1.146.9610 > 192.168.1.21.hexarc: Flags [P.], seq 1:124,
   ack 36, win 39, length 123
17:38:25.086299 IP 192.168.1.21.hexarc > 192.168.1.146.9610: Flags [.],
   ack 124, win 31, length 0

#Pgpool－〉客户端
17:38:25.027795 IP 192.168.1.21.distinct > 192.168.1.11.36426: Flags [P.], seq 124:177,
   ack 70, win 29, length 53
17:38:25.027812 IP 192.168.1.11.36426 > 192.168.1.21.distinct: Flags [.],
   ack 177, win 29, length 0
17:38:25.027819 IP 192.168.1.21.distinct > 192.168.1.11.36426: Flags [P.], seq 177:241,
   ack 70, win 29, length 64
17:38:25.027826 IP 192.168.1.11.36426 > 192.168.1.21.distinct: Flags [.],
   ack 241, win 29, length 0
17:38:25.027832 IP 192.168.1.21.distinct > 192.168.1.11.36426: Flags [P.], seq 241:247,
   ack 70, win 29, length 6
17:38:25.027839 IP 192.168.1.11.36426 > 192.168.1.21.distinct: Flags [.],
   ack 247, win 29, length 0

当客户端向pgpool发出select * from t where id=100;这样的查询时，pgool会把语句转发给pg－－这个通信没问题。但当数据返回时pgpool的处理就有问题了，pg直接一次返回给pgpool，但pgpool竟然分三次返回。

2、insert通信捉包分析

发送这样的insert into t(remark) values(md5(random()::text));语句

#客户端－〉pgpool
17:11:40.851896 IP 192.168.1.11.42150 > 192.168.1.21.distinct: Flags [P.], seq 196:252,
ack 582, win 29, length 56

#Pgpool－〉pg
17:11:40.898114 IP 192.168.1.21.dtserver-port > 192.168.1.146.9610: Flags [P.],
seq 1185:1241, ack 1023, win 31, length 56

#执行结果返回

#Pg->pgpool
17:11:40.906169 IP 192.168.1.146.9610 > 192.168.1.21.dtserver-port: Flags [P.],
seq 1023:1045, ack 1241, win 39, length 22
17:11:40.906183 IP 192.168.1.21.dtserver-port > 192.168.1.146.9610: Flags [.],
ack 1045, win 31, length 0

#Pgpool－〉客户端
17:11:40.860338 IP 192.168.1.21.distinct > 192.168.1.11.42150: Flags [P.], seq 582:598,
 ack 252, win 29, length 16
17:11:40.860353 IP 192.168.1.11.42150 > 192.168.1.21.distinct: Flags [.],
ack 598, win 29, length 0
17:11:40.860360 IP 192.168.1.21.distinct > 192.168.1.11.42150: Flags [P.], seq 598:604,
ack 252, win 29, length 6
17:11:40.860364 IP 192.168.1.11.42150 > 192.168.1.21.distinct: Flags [.],
ack 604, win 29, length 0

当客户端向pgpool发出insert into t(remark) values(md5(random()::text));这样的插入语句时，pgool会把语句转发给pg－－这个通信没问题。但当返回执行结果通知时就有问题了，pg直接一次返回给pgpool，但pgpool这次分二次返回，update、delete的通信也跟insert一致。

3、pgpool测试应用总结

1）、pgpool返回结果时会拆包，这个跟pgboucner或者haproxy不拆包有区别。

2）、pgpool及时发送零碎小数据包，减少数据存入缓冲区，通常情况下系统性能会更高,但如果高并发时，由于每个包都带有包头和交互次数增加，反而就会占用更大的网络io。

3）、就测试来看，pgpool比较适合于对于查询开销比较大（1ms以上），或者查询返回的流量比较大的应用。

社区资源

Pgpool相关

http://www.pgpool.net

http://www.pgpool.net/docs/latest/tutorial-zh_cn.html

http://francs3.blog.163.com/blog/static/4057672720149285445881/

Pgbench使用文档

http://www.postgres.cn/docs/9.6/pgbench.html
